SIS5100 CAMAC/FASTCAMAC controller

PCI-CAMAC

PCI Express-CAMAC

VME-CAMAC

The support of the CAMAC standard is a must for a Physics readout oriented company. It is a challenge however to base a current implementation of the traditional open bus standard and its later extensions on leading edge technology to facilitate integration into nowadays data acquisition systems. At a first glance a Gigabit link CAMAC controller may look like a mismatch between bus and link bandwidth, at second sight the readout of FASTCAMAC exhibits a good match of source and destination bandwidth.

The SIS5100 CAMAC controller can be used as a PCI (Express) to CAMAC interface in conjunction with the SIS1100 PCI or SIS1100-eCMC PCI Express Gigabit receiver cards, or as a VME to CAMAC interface in conjunction with the SIS3100 VME Gigabit module.

Photograph of SIS1100/5100:

SIS1100/3100 photograph

Features:

red ball

Standard CAMAC controller

red ball

FASTCAMAC level 1 and 2 support

red ball

Gigabit link connection

red ball

Gigabit single crate point to point implementation

red ball

LEDs of SIS1100-OPT

red ball

3 LEMO in/3 LEMO out (NIM or TTL level)

red ball

2 flat cable in/2 flat cable out (ECL or TTL level)

red ball

Inhibit, Ready, Access and User LEDs

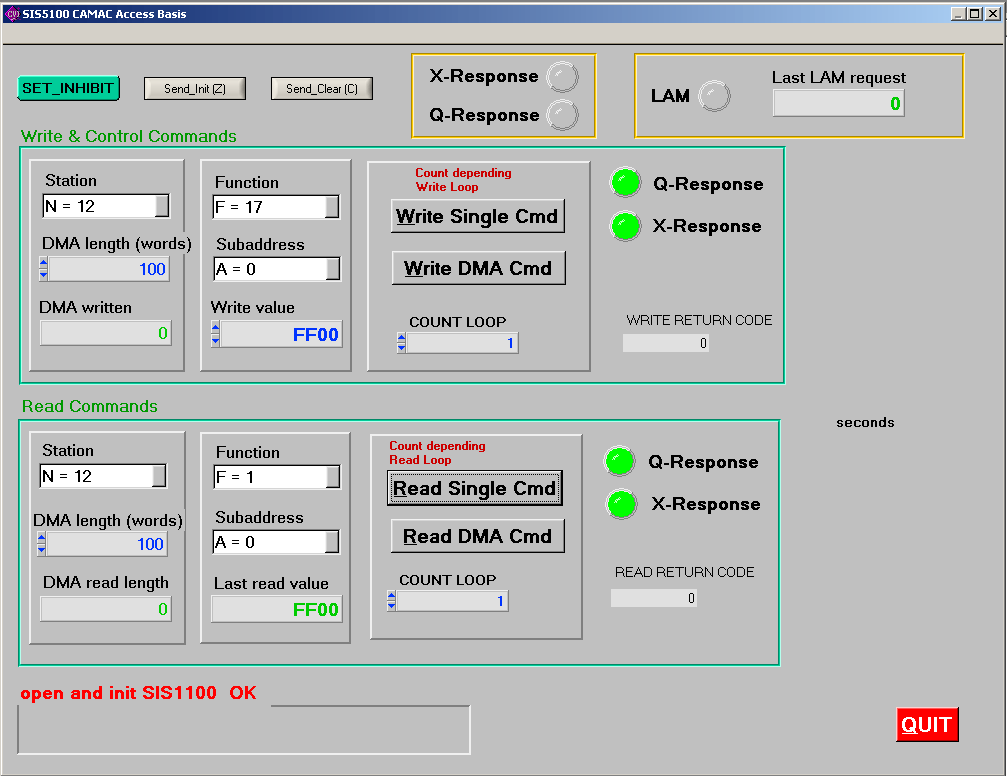

SIS5100 base program (Win2K/XP):

5100 base program screen shot


Associated Interfaces:

red ball

SIS1100 PCI Express Gigabit Interface

red ball

SIS1100 PCI Gigabit Interface

red ball

SIS3100-CAMAC VME Gigabit Interface
