SIS8300-L MTCA.4 Digitizer

10 Channel 125 MS/s 16-bit With Fast Feedback DACs

Based on the SIS8300 which was developed in co-operation with DESY under ZIM Förderkennzeichen 2460101MS9

The SIS8300-L was the Virtex®-6 based follow up to the SIS8300 MTCA.4 (µTCA for Physics) digitizer card, which was superseded by the SIS8300-L2 card in the meanwhile.


vertical bar

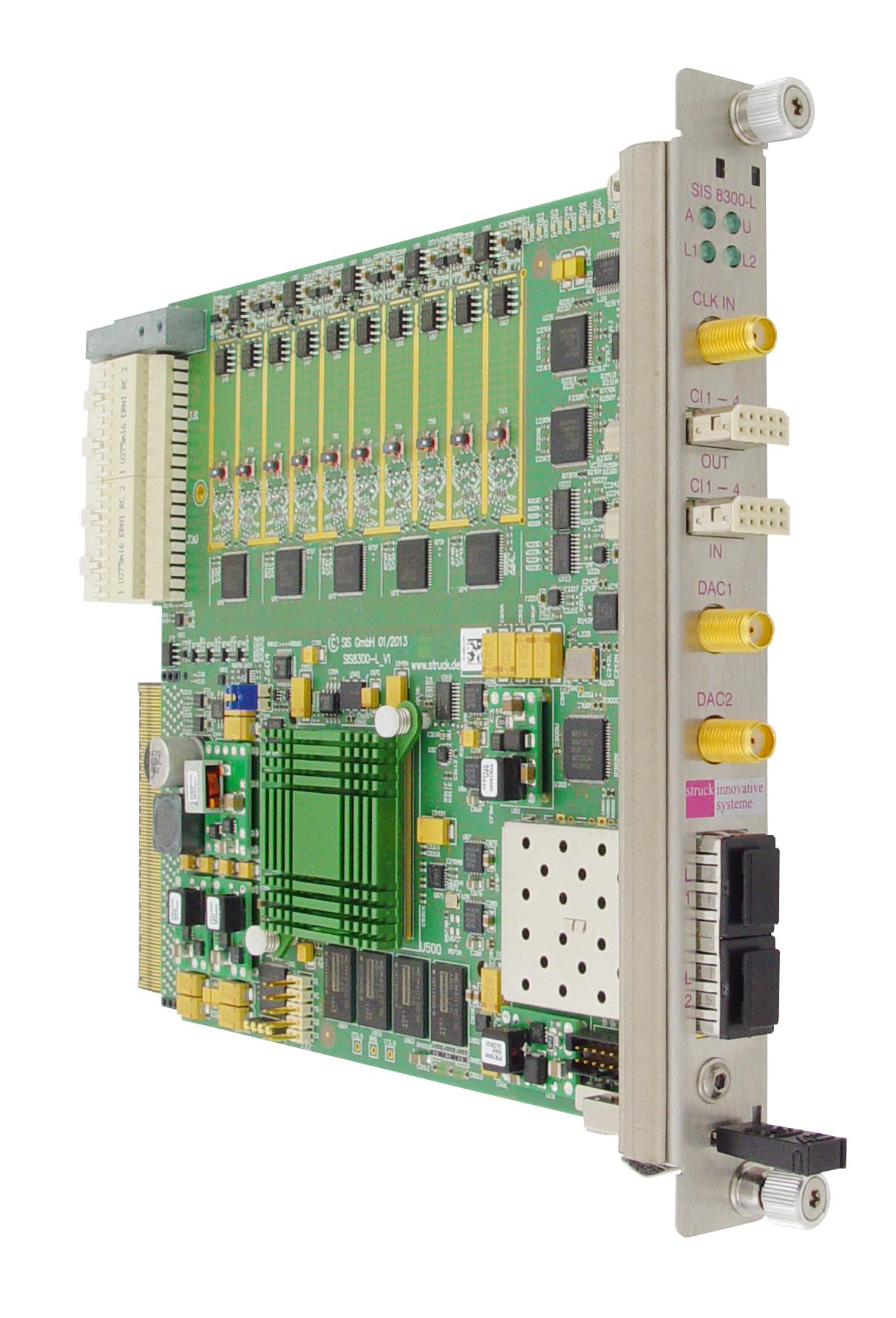

Photograph

SIS8300-L photograph

Central Design Parameters

  • MTCA.4 (µTCA for Physics Implementation)
  • 4 lane PCI Express Connectivity
  • 10 Channels 125 MS/s 16-bit ADC
  • 10 MS/s to 125 MS/s Per Channel Sampling Speed
  • AC and DC Input Stage
  • Internal, Front Panel, RTM and Backplane Clock Sources
  • Two 16-bit DACs for Fast Feedback Implementation
  • High Precision Clock Distribution Circuitry
  • Programmable Delay of Dual Channel Digitizer Groups
  • Gigabit Link Port Implemenation to Backplane
  • Twin SFP Card Cage for High Speed System Interconnects
  • Virtex-6 FPGA
  • One GSample Memory (flexible partitioning scheme)
  • In Field Firmware Upgrade Support
    		•
    vertical bar
    Ordering Options
    Part Number Xilinx FPGA Memory
    04506 XC6VLX130T-2FFG1156C 4 x 4 GBit DDR3
    05178 XC6VLX130T-2FFG1156C, no SMA/Harlink 4 x 4 GBit DDR3
    SIS8300-L Ordering Options
    vertical bar
    Available RTMs for the SIS8300-L Digitizer
    Name Source Description
    SIS8900 Struck Single Ended Input Card
    RTM7201 HYTEC 4-channel signal modulator
    DWC8300 Struck 10 Channel Downconverter
    DWC8VM1 Struck 8 Channel Downconverter, 1 channel Vectormodulator
    BPM DESY Interleaved sampling for BPM readout
    APD DESY Dual channel signal stretcher
    Fast ADC RTM SLAC LLRF ADC Frontend
    Available RTMs for SIS8300
