SIS8980 MTCA.4 Discriminator RTM

The SIS8980 card is a discriminator input card for the SIS8800 MTCA.4 scaler/counter. It was designed with counter based beam loss monitor and similar applications in mind.

vertical bar

Photograph

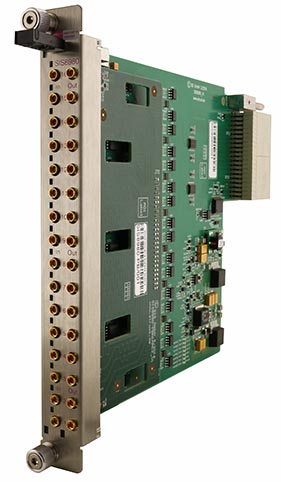

SIS8980 photograph

Central Design Parameters

  • MTCA.4 RTM
  • 16 Discriminator Inputs, Connector Type MMCX
  • Leading Edge
  • 50 Ohm +/- 1% DC Inputs
  • 14 Bit Threshold DAC for each Channel, 0,4 mV/Step
  • 16 Outputs with NIM Level, Connector Type MMCX
  • Programmable Pulse Length 10 ns - 250 ns
  • 16 Front Panel Channel Activity LEDs
  • MMC 1.0 compatible
  • Zone 3 class D1.1 compatible
    		•
