SIS9300 4 channel 100 MHz 14-bit ADC/digitizer CMC

The SIS9300 is a high speed ADC/digitzer card to be used in conjunction with the SIS3150 dual CMC carrier or similar boards. The focus of the card is on FPGA based (pre)processing of analog signals with storage of extracted parameters or passing of partial waveforms to the carrier card for further processing.

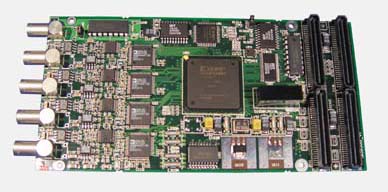

Photograph of SIS9300

Properties:

4 channels of 100 MHz 14-bit ADC

offset DAC

variable gain amplifier (VGA) option

1 digital input

5 LEDs

XC2S600E FPGA

TigerSHARC link access to FPGA

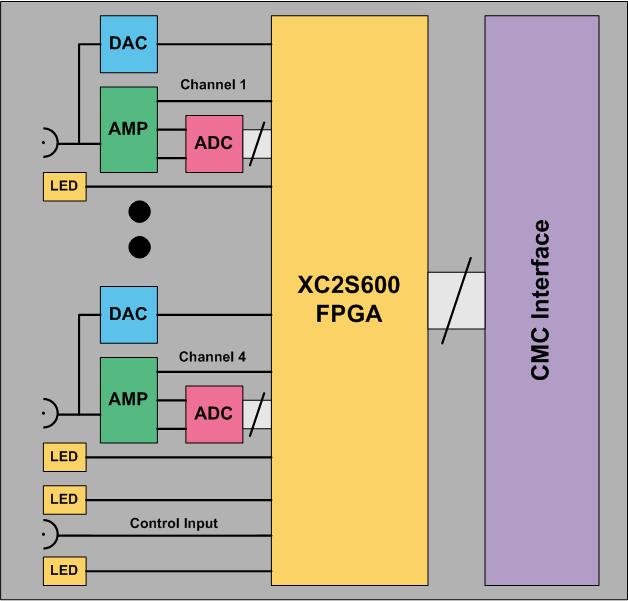

Block diagram
