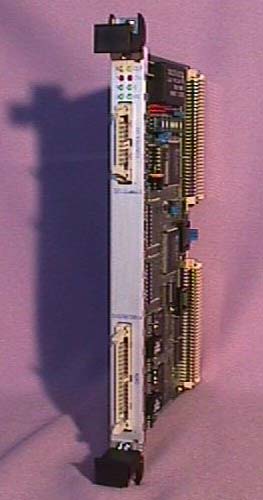

The SIS3810 is a dedicated counter on the base of the SIS360x/38xx base board. It is designed to measure the length of up to sixteen signals. The external signals are used as gates for a common programmable internal clock. The time bins can be programmed in steps of 100 ns, the minimum bin width is 500 ns. The individual counters can be read on the fly during data acquisition, a software clear mechanism on the channel base is implemented also. The unit is available with LEMO and flat cable connectors and a variety of input and control signal options. Have a look at the (Photograph of the Flat Cable Version).
16 channels
24-bit internal timer register/100 ns time bins
500 ns minimum time bin width
individual channel software clear
individual channel software inhibit
overflow register
overflow interrupt generation
flat cable and LEMO versions
A16/A24/A32 D16/D32Base address settable via 5 rotary switches (A32-A12) and one jumper (A11)
VIPA geographical addressing prepared
VIPA LED set
Up to eight firmware files
single supply (+5 V)
TTL (high impedance or 50 Ohms)
ECL

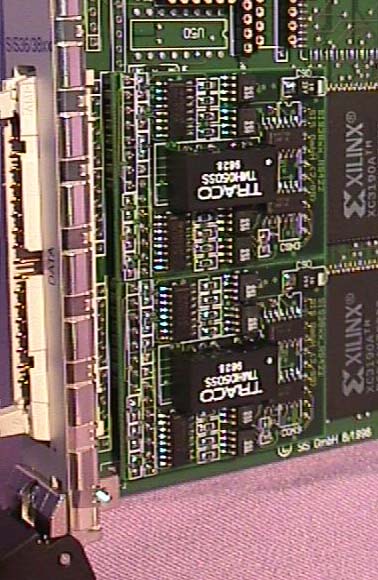

optocoupled RS422/485 (Photograph of the RS422 input stage)
NIM
TTL (high impedance or 50 Ohms)
ECL
NIM
