SIS3601 32-bit Output Register


The SIS3601 is the output register implementation on the base of the SIS360x/38xx base board.

Auto event number increment mode makes the unit perfectly suited to distribute event numbers in larger scale VME data acquisition systems.

The unit looks exactly like the SIS3800 flat or SIS3800 LEMO units, in the case of NIM and ECL ouput levels special driver piggy backs are installed.


Features/Properties:

red ball

32-bit output

red ball

data valid/write strobe output

red ball

pulse and level mode

red ball

ECL, NIM, TTL or LVDS levels

red ball

LEMO (NIM, TTL) or flat cable (ECL, LVDS) connectors

red ball

event number auto increment mode (in level mode only)

red ball

multiplexer and multiplexer data register

red ball

user control output /coupled with user LED)

red ball

NIM/ECL/TTL versions

red ball

LEMO/flat cable and LEMO/flat mixed versions

red ball

VME Access/user LED

red ball

A16/A24/A32 D16/D32

red ball

VME64x Connectors

red ball

VME64x Side Shielding

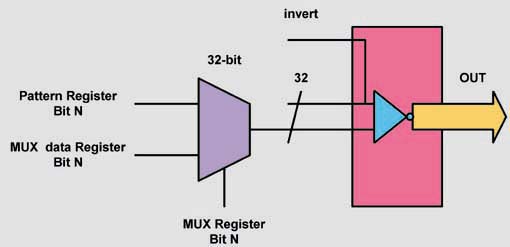

Multiplexing of pattern and multiplexer data register

The multiplexing of the multiplexer data register and the pattern register allows the user to define a N-bit wide counter, which is incremented in auto increment mode and to use the upper remaining bits of the SIS3601 as standard output register. The multiplexing behaviour is defined bit wise with the multiplexer register, if a bit is set, the status of the corresponding output bit will be taken from the multiplexer data register, if the bit is cleared the status of the pattern register will be used.

SIS3601 multiplexing

Pulse/Level mode:

pulse/level mode diagram
Last update 25.10.01 by Matthias Kirsch
