SIS1104 4-Lane PCI Express Quad Optical Link Card

vertical bar

Multiple lane PCI Express cards allow for the implementation of data acquisition hardware with unprecedented performance. The SIS1104 was developed for the readout of data streams from pn-CCD pixel detectors at state of the art X-ray sources like the DESY FLASH. One of the key requirements is loss free high sustained data throughput.

vertical bar

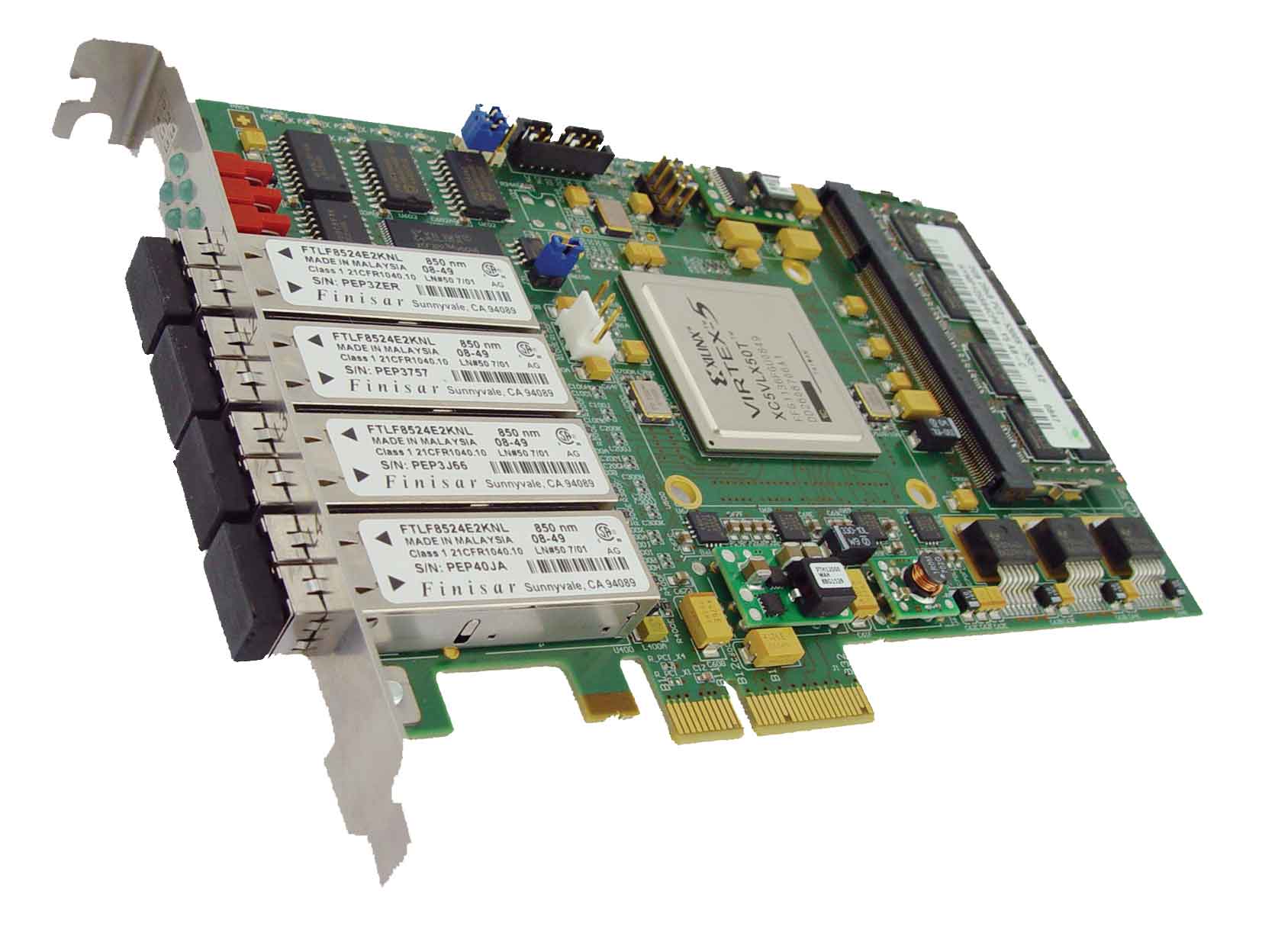

SIS1104 photograph

Features/Properties:

  • 4-lane PCI Express
  • Xilinx Virtex 5 FPGA based
  • four 1/2/4 GBit/s SFF link media
  • 640 MByte/s sustained throughput with LINUX driver
  • 2 GByte buffer memory option
  • In field firmware upgrade capability
  • vertical bar vertical bar

    The SIS1104 was developed under contract for the Halbleiterlabor of the Max Planck Gesellschaft.
