CAMAC Extender


After some 30 years in field CAMAC is still alive and kicking. CAMAC extenders are a useful tool for board maintenance and development/debugging support of new CAMAC modules. SIS offers a cost effective CAMAC extender solution with a great deal of functionality.

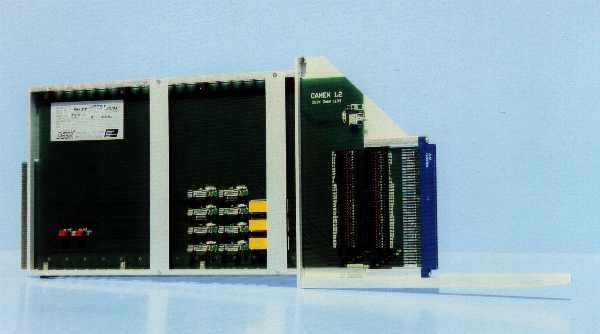

Photograph of the CAMAC extender

CAMAC extender photograph

Properties of the extender

red ball

One CAMAC slot wide

red ball

Heavy duty mechanical design

red ball

Supply voltages protected by fuses

red ball

8 LED indicators for supply voltages

red ball

Availability of all 86 CAMAC lines

red ball

Test pins for all CAMAC lines

red ball

ACL, ACN, +200 V and E can be disconnected by jumpers

red ball

Supply voltages to be switched off under relais control

red ball

All signal lines can be separated from the bus via DIP switches
