SIS3302 4 Channel 100 MS/s 16-bit ADC

vertical bar

The SIS3302-4 is the reduced channel count version of the SIS3302 board.

vertical bar RoHS label vertical bar

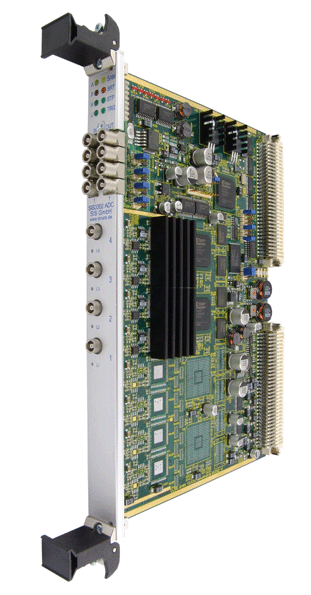

Photograph

(without metal cover)
SIS3302-4 photograph

Features/Properties:

red ball

Single width 6U VME card

red ball

4 channels

red ball

100 MS/s per channel (1 - 100 MHz external clock, external random clock, 1/10/25/50/100 MHz internal clock)

red ball

16-bit resolution

red ball

> 13 effective bits

red ball

32 MSamples memory/channel

red ball

16-bit offset DACs

red ball

50 MHz bandwidth

red ball

Internal/External clock

red ball

Multi event mode

red ball

Readout in parallel to acquisition

red ball

Pre/Post trigger capability

red ball

Trigger OR output (8 individual thresholds)

red ball

A32/D32/BLT32/MBLT64/2eVME

red ball

1-wire Id. serial PROM

red ball

In field JTAG and JTAG over VME firmware upgrade capability
