SIS 1100-CMC PCI CMC Carrier board


The SIS1100-CMC is a PCI CMC (Common Mezzanine Card, IEEE P1386 draft) carrier board. The card is part of the SIS PCI-VME interface, but due to its flexible FPGA based design it can be used as a versatile carrier board for a variety of CMC front end cards.


Features:

red ball

PCI card format

red ball

PCI 2.1 and 2.2 compliant

red ball

PLX9054 PCI master bridge chip

red ball

Protocol FPGA

red ball

serial configuration PROMs for FPGA and PLX bridge

red ball

JTAG port to FPGA PROM and FPGA

red ball

CMC (IEEE P1386 Draft 2.3) single size carrier

red ball

all CMC data lines routed to FPGA

red ball

SMD LEDs routed to FPGA

Available Firmware Versions:

red ball

SIS1100-OPT interface

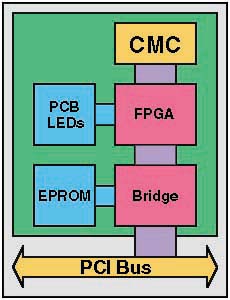

Block Diagram:

SIS1100 CMC block diagram

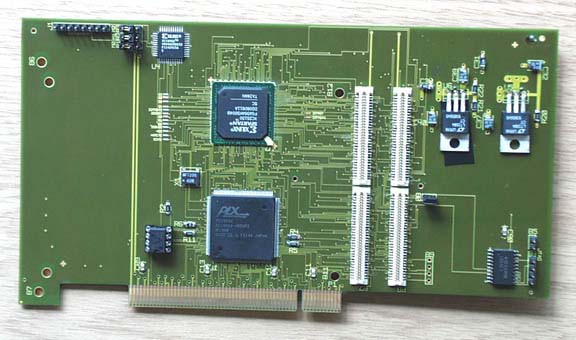

Photograph:

SIS1100-CMC photograph

The SIS1100-CMC was developed by the ZEL department of the research center Juelich.


Last update 24.04.01 by Matthias Kirsch
